Description

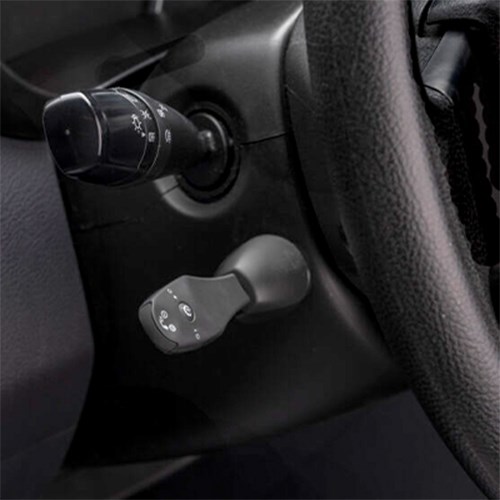

The AP900 series is a professional Drive-By-Wire cruise control and speed limiting system that is compatible with CAN Bus to reduce installation time. The features is self-learning capabilities to capture and determine various cruise parameters.

Note: The AP900 series can be installed on any vehicle with Drive-By-Wire electronic throttle pedals and can be equipped with different types of control modules (Command Module) to operate the cruise control functions.

This product is with TUV certified and E1 Mark approved.

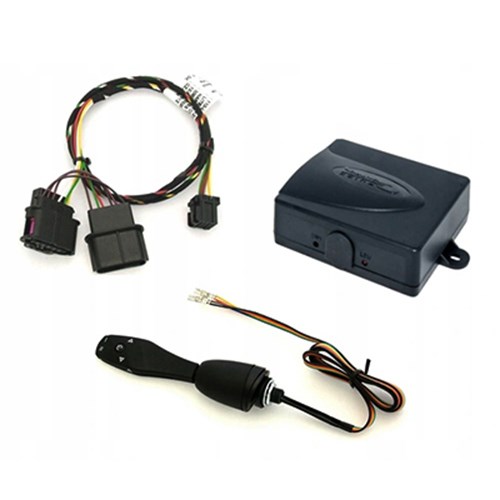

【 Product Contents 】

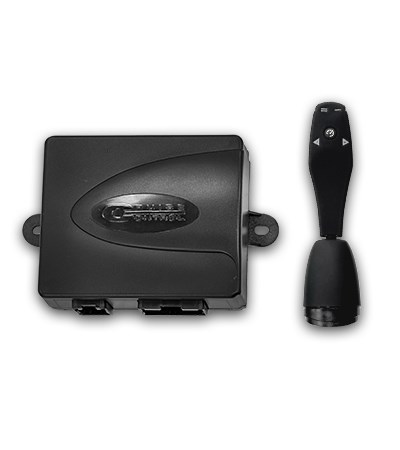

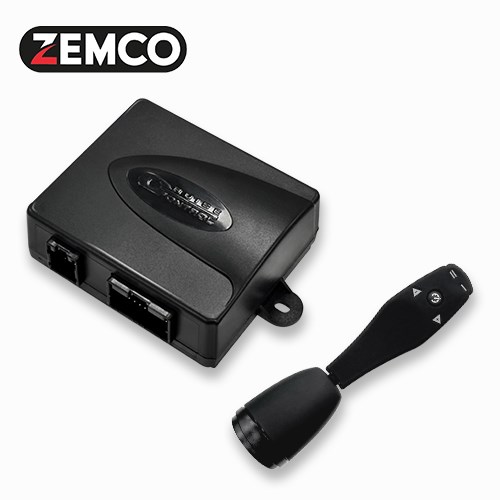

• AP900 main unit
• Command module
• Main harness／throttle pedal harness
• User manual
• Accessory package

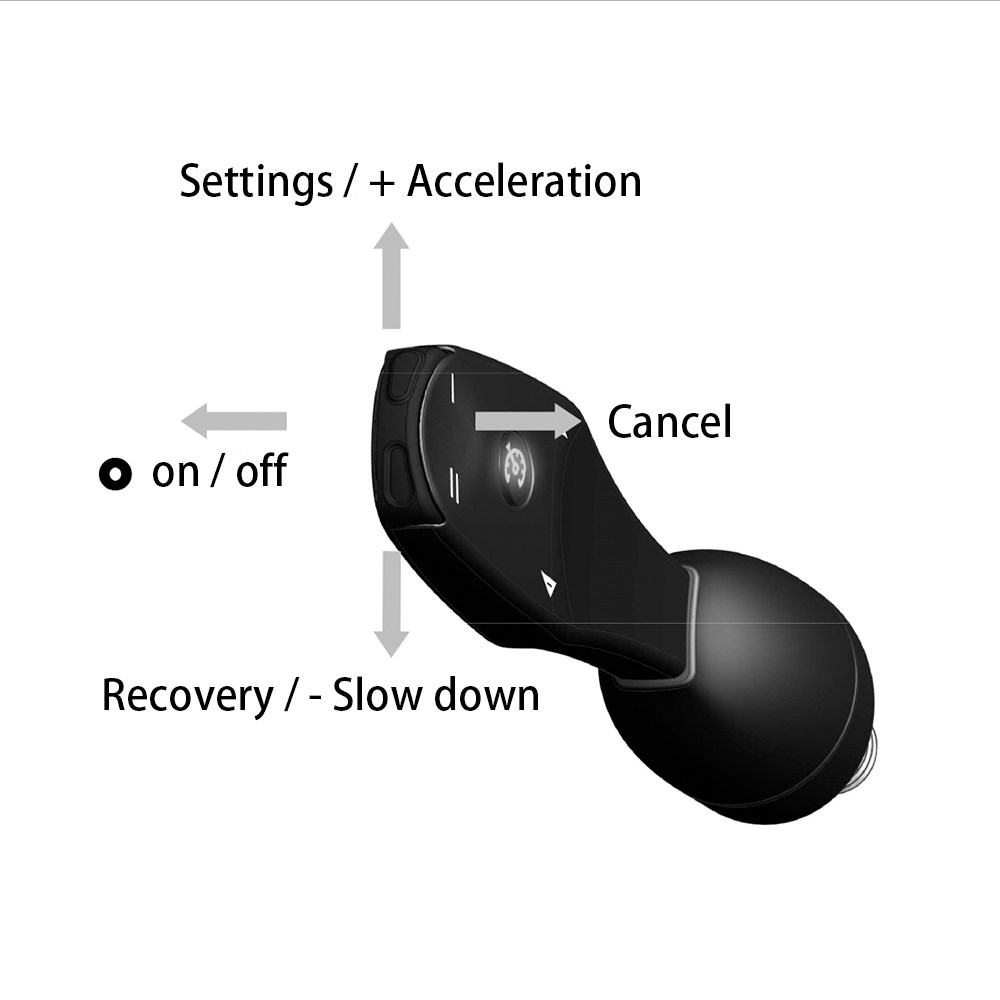

【 Functions 】

• On/Off Switch: Activate or deactivate the cruise control function.
• Set: Set the cruise control speed.
• Accelerate: Press and hold the acceleration button to continuously increase the vehicle speed. The speed will continue to increase until the button is released.
• Tap to Accelerate: Press and immediately release the Acc/Set button to increase the speed by approximately 1 km/h each time.
• Decelerate: Press and hold the deceleration button to continuously reduce the vehicle speed. The speed will continue to decrease until the button is released.
• Tap to Decelerate: Press and immediately release the Del/Res button to decrease the speed by approximately 1 km/h each time.
• Coast(Deactivate): This function disengages the cruise control system.
• Resume: Press this button to resume the previous set speed when the system is in the deactivated state.

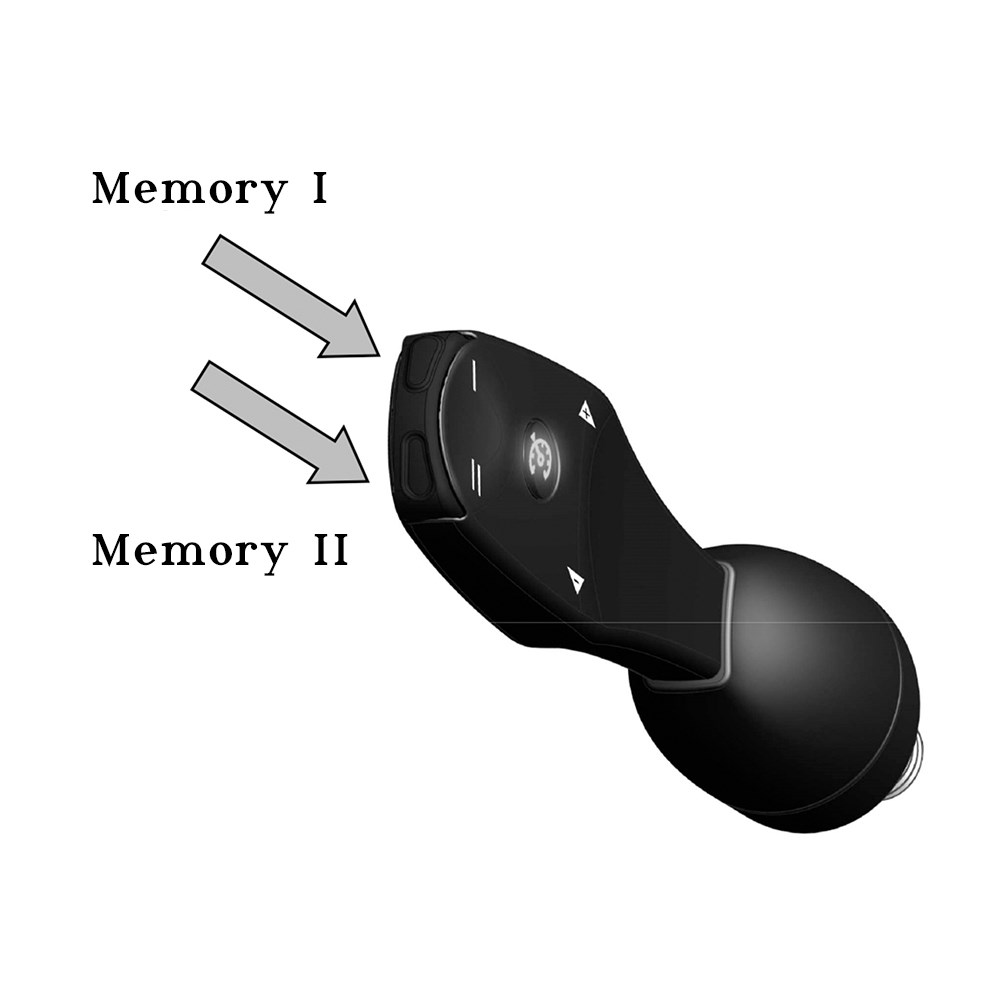

• Speed Memory (CM35): Memorize the current speed, unaffected by turning off the cruise control. The stored speed can be recalled at any time when the cruise control is in standby mode.



【 Product Features 】

• Connect to CAN-BUS or physical wiring (speed line, RPM line, neutral line, brake line).
• Self-learning throttle pedal procedure; memorizes the full electronic parameters of the electronic throttle pedal travel (suitable for any electronic throttle vehicle).
• For general road use where cruise control is not applicable, the speed limiting function can be activated (e.g., set to 80 km/h, allowing free control from 0 to 80 km/h but not exceeding 80 km/h).
• Self-diagnostic function to verify all cruise control characteristics, functions, and connection lines, making it easy to troubleshoot issues.
• Safety functions: Cruise control will immediately disengage under the following conditions:
  1. Pressing the brake pedal
  2. Pressing the CANCEL button
  3. Shifting to neutral or pressing the clutch pedal
  4. Pressing the cruise OFF button
  5. Turning off the ignition switch
  6. Engine RPM too high
  7. Vehicle speed below 75% of the set value (steep uphill)
  8. Vehicle speed above 150% of the set value (steep downhill)
  9. Brake fuse blown
  10. Any connection wire falls off or is incorrectly connected
